INTRANS LITE

Smart entry level tracking device for fleet management & Stolen Vehicle Recovery.

Intrans Lite 2017-07-31T02:11:36+00:00

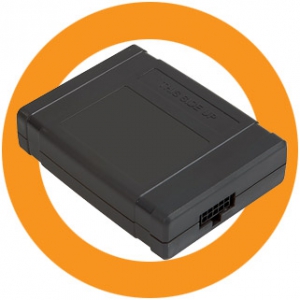

InTrans Lite

Cost-Effective Fleet and Security Management Solution

InTrans LiteIdeal for the transportation industry and those with large fleets including insurance and leasing the InTrans Lite provides an effective wireless sensor network solution (WSN) using proximity, tampering and geo-fencing to:

  • Track your cargo
  • Remotely monitor your workers, assets or vehicles
  • Provide your business with real-time data and business intelligence
  • Achieve operational efficiencies
  • Promote a safety culture
  • Reduce costs

The InTrans Lite comes equipped with a rechargeable battery and GSM jamming detecting algorithms for improved compliance and vehicle security applications, whilst also supporting average hibernation. Applications such as fuel and temperature monitoring and more, are also available.

By using the InTrans Lite, complete visibility and location of your valuable assets and cargo is possible through real time monitoring.

Download PDF

Download the InTrans Lite brochure to discover more features.

Download PDF

Features

Try our free demo

Like to see Data inTrans telematics in action? Try our free demo.

Try Demo

Technical Specifications

Communication
GSM 3G
Power Output 2W, 1W
SIM Internal, replaceable
Antenna Internal, quad band GSM antenna
Packet Data TCP/IP, UDP/IP
GPS
Technology Chipset: SiRFstarIV GSD4e chipset
Sensitivity (Tracking) -163dBm
Acquisition (normal) Cold <35Sec, Warm <35Sec, Hot <1Sec
Antenna On board, internal patch antenna
Inputs and Outputs
Inputs 1 internally pulled down input dedicated for ignition switch
2 general purpose units with assignable functionality and configurable polarity
Outputs 2 general purpose open drain outputs (250mA max) with assignabl functionality
Motion sensor For movement and towing detection
Interfaces
COM port Selectable baud rate (9600 or 115000bps)
TTL Levels (external TTL-USB adaptor)
8 bit; 1 Stop Bit; No Parity
Configuration
Firmware upgrade
1-Wire™(Dallas port) DS1990A, DS1971 compliant
Driver management
Car Alarm Authorization
Power
Input Voltage 9-32VDC
Average

Current consumption

Normal: 40mA

Economic: 23mA

Hibernation: <2mA

Internal Battery (CR-300B) Li-ion polymer, 3.7V, 440mAh,

rechargeable

Embedded NTC for temperature

controlled charging

Operating temperature: -20(65% charge) – 60°C

Battery monitoring: Temperature (NTC) & voltage

Autonomy: Up to 40Tx @1Msg/min @25°C

Protections: over current, overcharge and over discharge

Vehicle Environment Immunity
Immunity Compliant with ISO 7637 test level #4 (in accordance with e-mark directive)
Environment
Temp, operating -30°C to +70°C full performance

-40°C to +85°C – degraded communication

Temp storage -40°C to +85°C
Humidity 95% non-condensing
Protection IP40
Vibration, Impact ISO 16750
Dimensions & Weight
 Dimensions 91x69x23mm
Weight ~ 100gr (approximately)
